Longitudinal Seam Welders LSM10
Longitudinal Seam Welders LSM10
+LSW Type Longitudinal seam welders is a main process equipment used to produce linear welds on abutting edges of thin wall cylinder or rectangular tube.

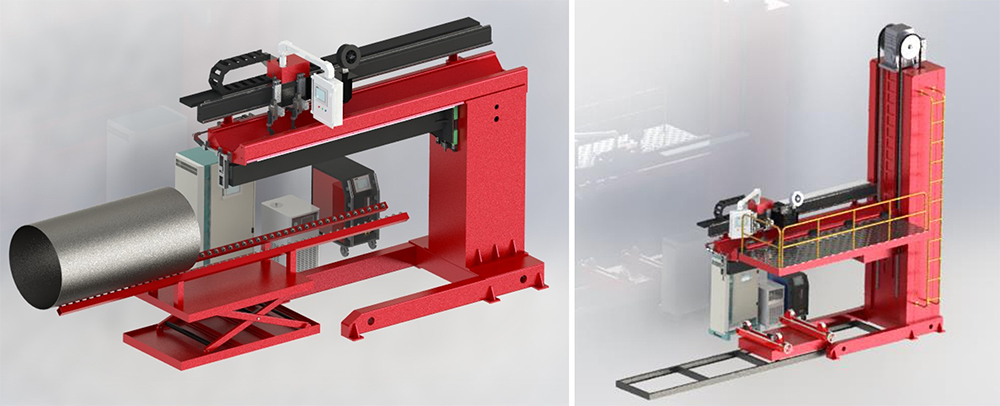

+LSW Type Longitudinal seam welders includes: machine seat 、crossbeam 、Hold down fingers、Back-up mandrel,、Water cooling copper interleaver 、travel Carriage and Control、dual Axis Slides etc
+Hold down fingers can generates a clamping force of up to 25 kg/cm through air-operated；
+Travel Carriage and Control is mounted on the crossbeam,，it is driven by a DC motor to make the straight line sport on the horizontal beam。
+Dual axis slides provided with manual or dynamoelectric type；control system can add the function of arc length control or welding oscillator.
+Suitable for various welding processes such as TIG, MIG/MAG, PLASMA ，suitable for carbon steel, stainless steel, titanium and other alloys material.
Longitudinal Seam Welders LSM10 (manipulator) is used in petrochemical machinery, engineering machinery, wind power equipment, construction & bridge, shipbuilding, food & pharmaceutical and other industries.
